SSD series IQF tunnel freezer is a simple-structured, stable-performing, and versatile high-efficiency freezing device. Depending on the type of conveyor belt, it can be divided into SSD-W mesh belt tunnel freezer, SSD-B plate belt tunnel freezer, and SSD-C impact tunnel freezer.
Applications
SSD-W mesh belt tunnel freezer is suitable for quick freezing of seafood, poultry, pasta, vegetarian food, seasoning packs and other products.
SSD-B plate belt tunnel freezer is suitable for handling high-moisture, soft, fluid-like food products.
Samples
Fresh Fish
Frozen Fish
Fresh Dumpling
Frozen Dumpling
Walley offers three models of IQF tunnel freezers

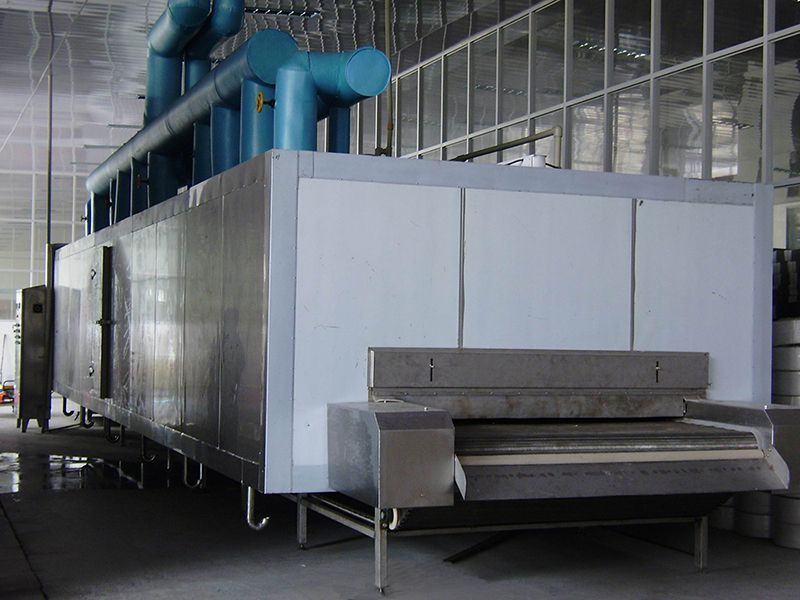

SSD-W mesh belt tunnel freezer
Recommendation Reason: mesh belt tunnel freezer is suitable for IQF, BQF, and tray quick freezing.
Specifications
Model
SSD-W-300
SSD-W-500
SSD-W-750
SSD-W-1000
SSD-W-1500
Capacity (kg/h)
300
500
750
1000
1500
Dimensions (m)
9.3×3.3×2.2
10.3×3.3×2.2
12.3×3.7x2.2
15.3×3.7×2.2
18.3×4.3×2.2
Freezer length (m)
7
8
10
13
16
Input material temperature (℃)
+15
Output material temperature (℃)
-18
Freezing temperature (℃)
-36+/-2
Freezing time (min)
5-50 (continually adjustable)
Refrigerants
R717/R507a/R404a
Cold consumption (kW)
70
110
140
180
270
Power (kW)
11
12
15
22
32
Note:
1. Capacity mentioned above is based on dumplings. The capacity may vary for different materials even with the same model.
2. Working conditions: +35°C/-40°C.
3. The power excludes the compressor system.
SSD-B plate belt tunnel freezer
Recommendation Reason: The frozen surface is smooth, without any marks, making it suitable for high-quality frozen products with strict surface requirements.
Specifications
Model
SSD-B-300
SSD-B-500
SSD-B-750
Capacity (kg/h)
300
500
750
Dimensions (m)
18×2.5×1.6
24×2.5×1.6
28×2.5×1.6
Freezer length (m)
13
18
22
Input material temperature (℃)
+15
Output material temperature (℃)
-18
Freezing temperature (℃)
-36+/-2
Freezing time (min)
5-50 (continually adjustable)
Refrigerants
R717/R507a/R404a
Cold consumption (kW)
70
130
185
Power (kW)
14
18
23
Note:
1. Capacity mentioned above is based on frozen naked scallop. The capacity may vary for different materials even with the same model.
2. Working conditions: +35°C/-40°C.
3. The power excludes the compressor system.
SSD-C impact tunnel freezer
Recommendation Reason: The mesh belt is designed to be exposed to air on both sides, enabling fast freezing speed.
Specifications
Model
SSD-C-500
SSD-C-750
SSD-C-1000
Capacity (kg/h)
500
750
1000
Dimensions (m)
7.0×4.4×3.1
10×4.4×3.1
13×4.4×3.1
Freezer length (m)
6
9
12
Input material temperature (℃)
+15
Output material temperature (℃)
-18
Freezing temperature (℃)
-36+/-2
Freezing time (min)
5-50 (continually adjustable)
Refrigerants
R717/R507a/R404a
Cold consumption (kW)
90
140
190
Power (kW)
32
47
62
Note:
1. Capacity mentioned above is based on fish fillet. The capacity may vary for different materials even with the same model.
2. Working conditions: +35°C/-40°C.
3. The power excludes the compressor system.
Features

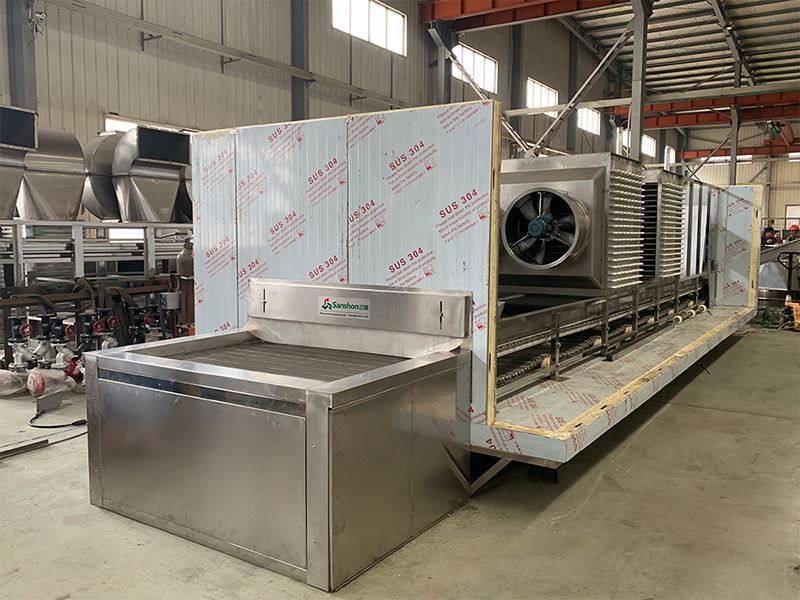

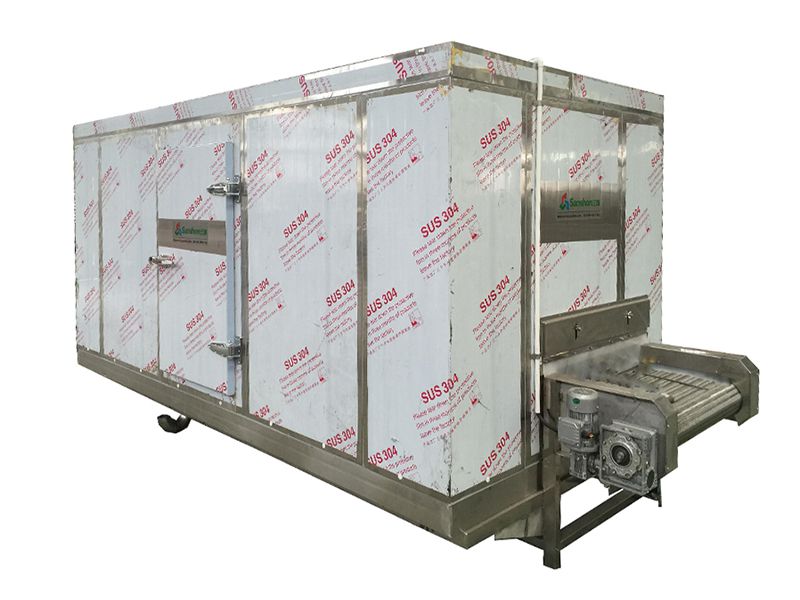

The insulation body of the freezer is made of double-sided stainless steel polyurethane sandwich panels, and the internal polyurethane is injected and foamed with a high-pressure foaming machine imported from abroad.

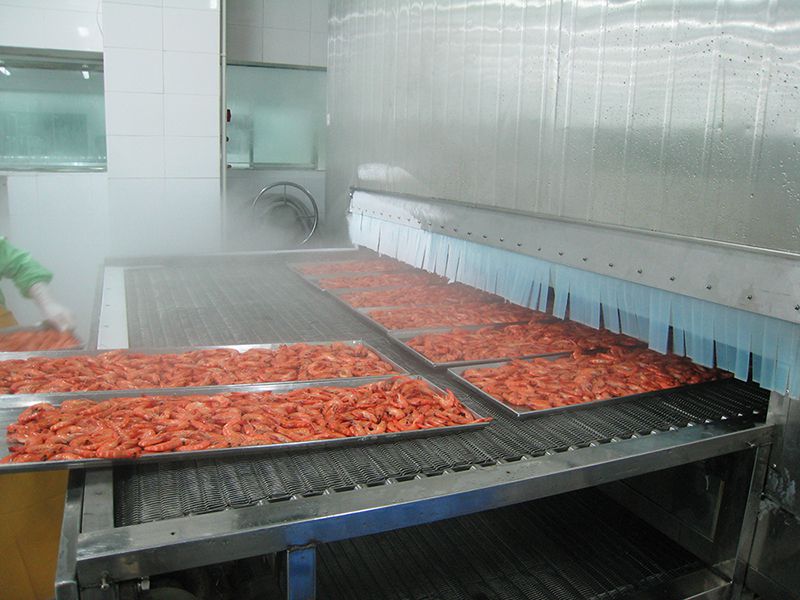

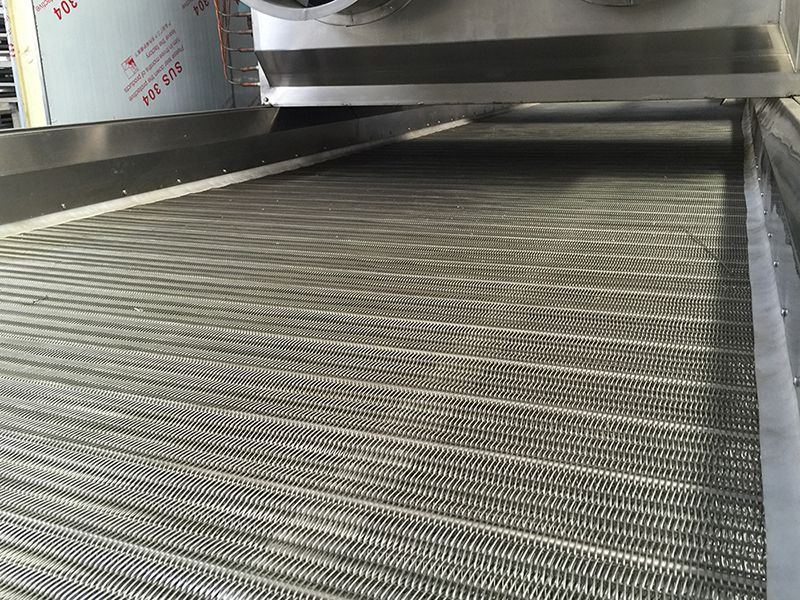

The conveyor mesh belt is made of 304 stainless steel spring wire, being pressed and formed. It has a smooth surface, long service life, and is equipped with a high-quality frequency converter for stepless speed regulation.

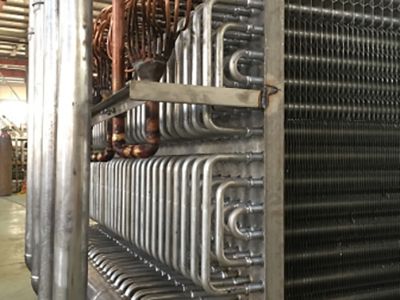

The evaporator adopts a three-inlet, three-outlet welding design to enhance refrigeration efficiency. The fins are designed with variable fin spacing to ensure continuous and efficient freezing.

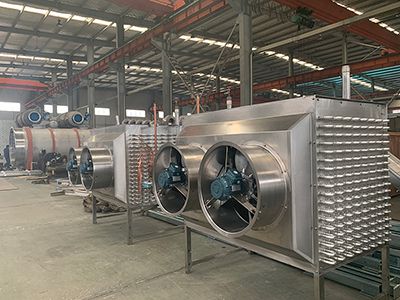

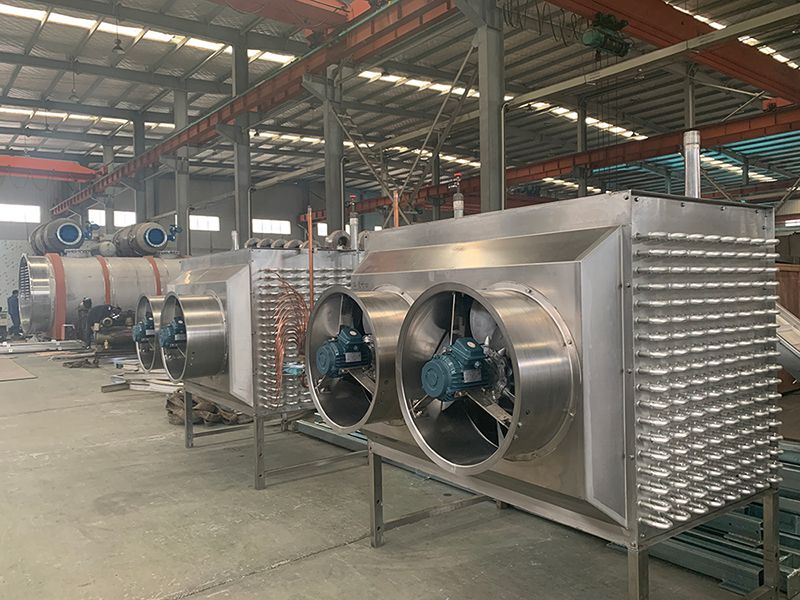

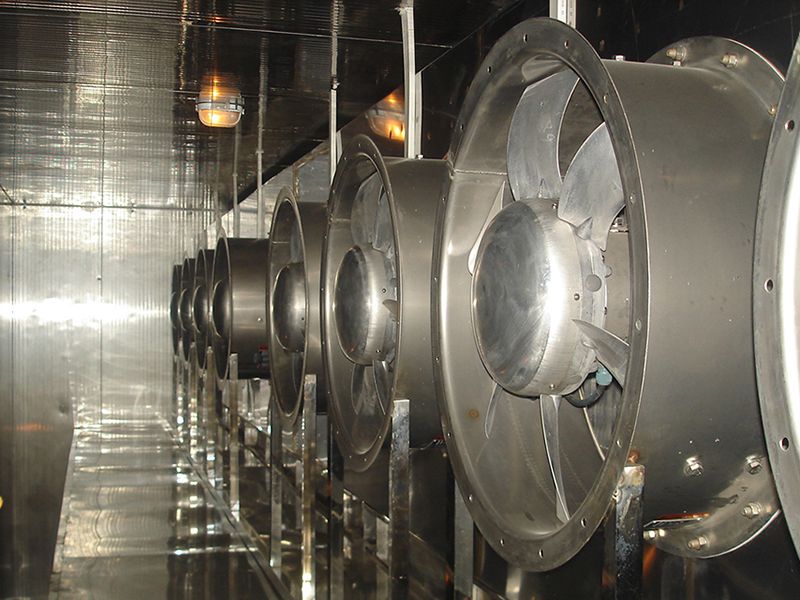

The ventilation system adopts axial flow fans with fully enclosed, low-temperature resistant, moisture-proof, and waterproof motors. It is efficient, energy-saving, low-noise, and operates smoothly. The motor blades are made of anti-rust aluminum alloy, and the fan casing and protective cover are made of stainless steel. The air circulation is smooth, resulting in excellent freezing effects.
